Single layer glass reactor

The single-layer glass reaction kettle can be used for high-temperature reaction, or it can be pumped into vacuum for negative pressure reaction. The single-layer glass reactor can carry out various solvent synthesis reactions under constant temperature, can continuously inhale various liquids and gases under negative pressure, and can also perform reflux or distillation at different temperatures.

  • Introduction

  • Specifications

Single layer glass reactor

Single layer glass reactor

Single layer glass reactor

Single layer glass reactor

Single layer glass reactor

Single layer glass reactor

Single layer glass reactor

Single layer glass reactor

Model

F-10L

F-20L

F-30L

F-50L

F-80L

F-100L

Stirrer speed

0-600rpm

Bath power

3KW

6KW

6/9KW

Temp. Range

0-200℃ ± 0.2℃

PTFE Combined sealing

12*32*10

15*32*10

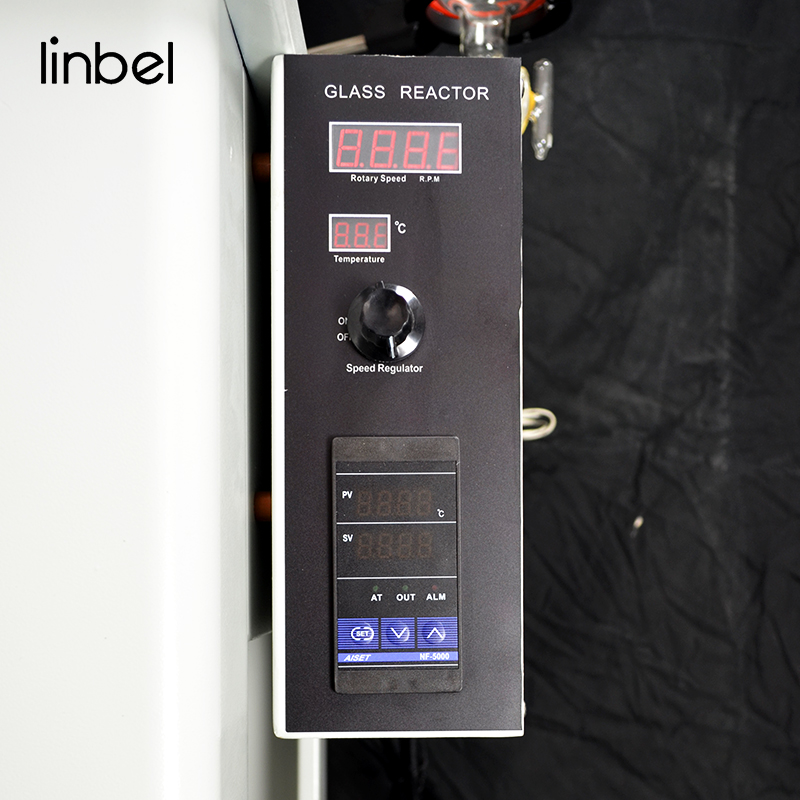

Controller

Speed digital display / Temperature display

Solid inlet port

φ125mm

φ80mm

Liquid inlet port

34#

Temperature tube

24#200mm

24#230mm

24#300mm

24#350mm

29#800mm

29#480mm

Distillation device

500ml

1000ml

Collection flask

5-50L optional

Condenser

Vertical double serpentine condenser

Constant pressure dorp funnel

34#1000ml

34#2000ml

Discharge valve

370mm

480mm

600mm

600mm

600mm

650mm

Bath drain

Optional

Cooling coil

Optional

Size(mm)

640*560*1880

690*610*2080

750*670*2250

780*710*2250

850*760*2330

850*760*2500

Voltage

220V/50Hz

220V/50Hz / 380V/50Hz

EX-Proof motor

Optional

EX-Proof controller

Optional

Cooling coil

Copper cooling coil is optional.

SUS Frame, no heating single layer glass reactor is optional.
