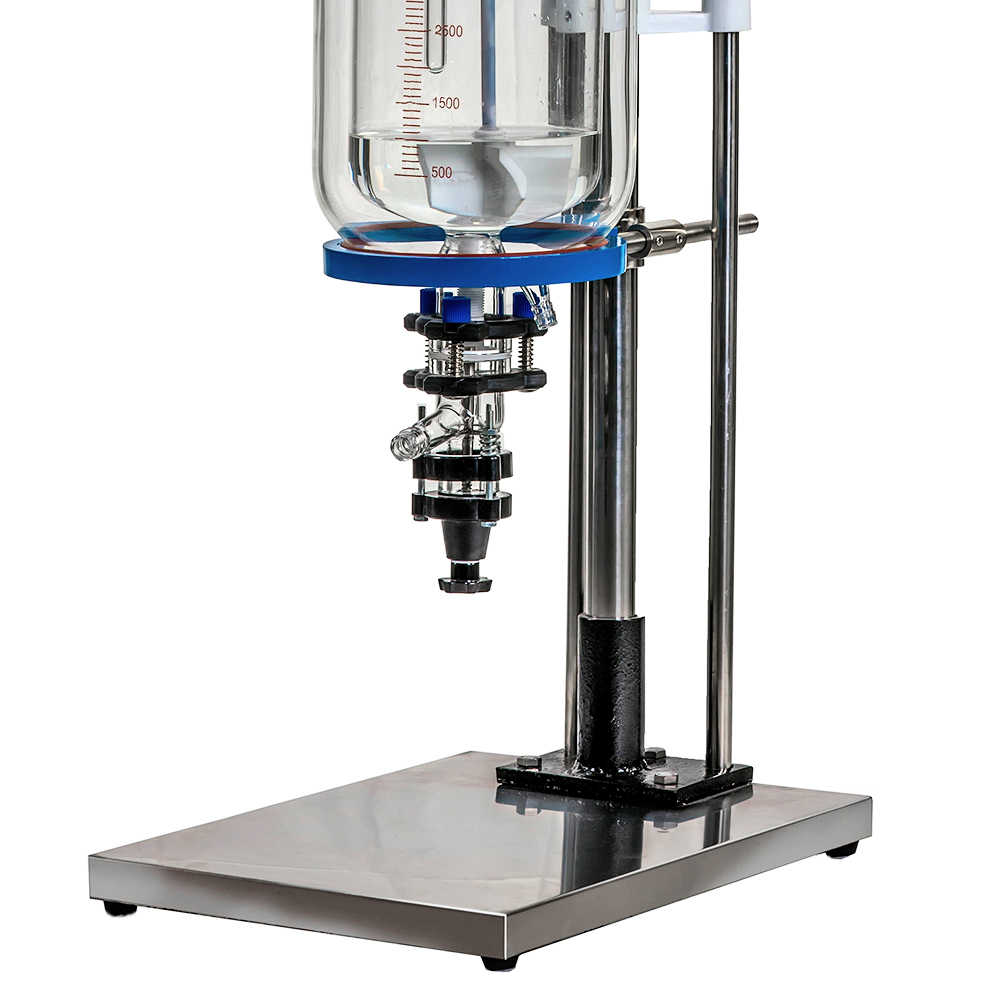

GR-5L Glass Reactor

  • Introduction

  • Specifications

GR-5L Glass ReactorGR-5L Glass Reactor

GR-5L Glass Reactor

GR-5L Glass Reactor

GR-5L Glass Reactor

GR-5L Glass Reactor

GR-5L Glass Reactor

GR-5L Glass Reactor


Model

GR-5L

Volume(L)

5

Jacket volume(L)

2

Condensation area(m²)

0.3

Feeding tank volume(L)

0.5

Recovery tank volume(L)

3

Kettle cover diameter

Impeller diameter

50# flangetype

Temperature sensor diameter

40# flangetype

Condenser connection

50# spherical grinding

Liquid feed inlet

34# standard grinding×1

Feeding tank interface

40# standard grinding

Solid feed inlet

/

Glass assembly

High borosilicate glass 3.3

Main frame

SUS304

Stirring paddle

Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium

Motor

For viscous materials, high-power motors can be used

Move method

Lockable casters

Working temperature(℃)

-120℃~300℃

Maximum temperature difference(℃)

≤60

Pressure in kettle(MPa)

-0.1~0.1

Jacket pressure resistance(MPa)

≤0.1

Pressure rise rate of vacuum system

≤2kPa/h

Mixing motor power(W)

Common 120W/ explosion proof 180W

Speed regulation mode

Frequency control

Speed adjustment range(rpm)

0~600

Temperature sensor

PT100

Temperature display accuracy(℃)

±0.1

Temperature range

Water: RT~90℃

Oil: RT~300℃

Interface size of stainless steel insulation hose

½in external screw thread

Seal material

PTFE

Installation height of discharge valve(mm)

205

Power

220V/110V,50/60Hz

Environment temperature(℃)

5~35

Relative humidity(%)

≤ 65

Size(mm)

500W×520D×1510H

Weight(kg)

60
