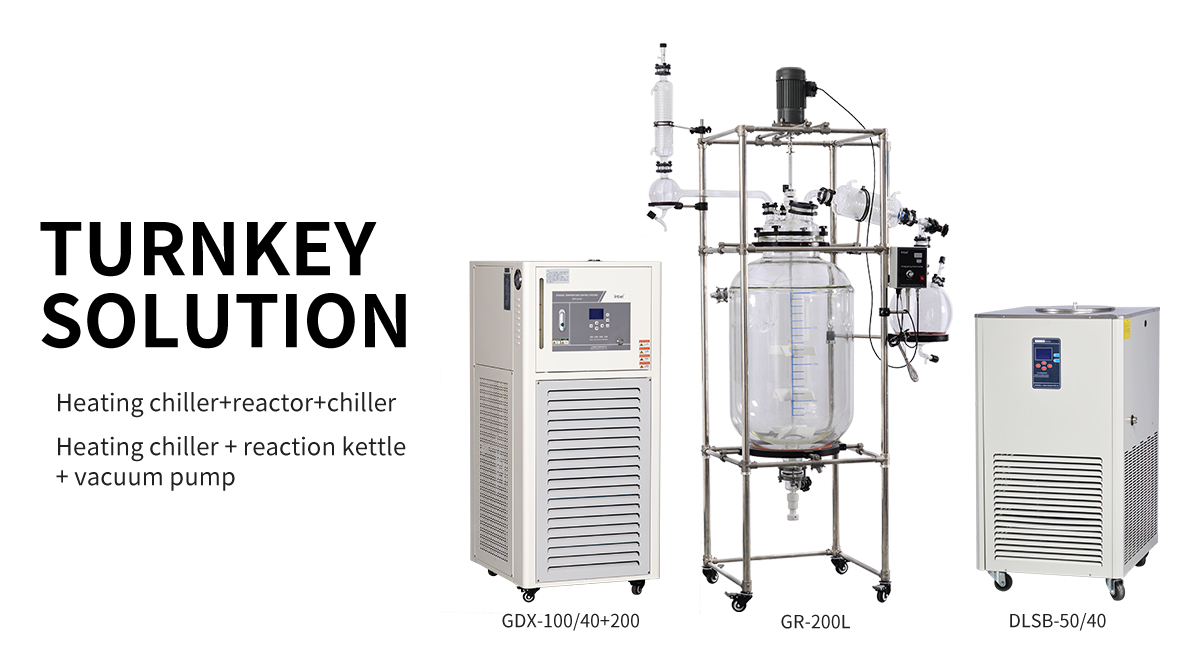

GR-200L Glass Reactor

The double jacketed glass reactor is made of double glass with high borosilicate as raw material, with high permeability and corrosion resistance. The reaction medium is put into the inner layer for stirring reaction, and different cold and heat sources can be connected to the interlayer for circulating heating or cooling reaction.

  • Introduction

  • Specifications

GR-200L Glass Reactor

GR-200L Glass Reactor

GR-200L Glass Reactor

GR-200L Glass ReactorGR-200L Glass Reactor

GR-200L Glass Reactor

GR-200L Glass Reactor

GR-200L Glass Reactor


Model

GR-200L

Volume(L)

200

Jacket volume(L)

60

Condensation area(m²)

/

Feeding tank volume(L)

2

Recovery tank volume(L)

20

Kettle cover diameter

Impeller diameter

60# flangetype

Temperature sensor diameter

40# flangetype

Condenser connection

50# spherical grinding

Liquid feed inlet

34# standard grinding×1

Feeding tank interface

40# standard grinding

Solid feed inlet

120# flangetype

Glass assembly

High borosilicate glass 3.3

Main frame

SUS304

Stirring paddle

Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium

Motor

For viscous materials, high-power motors can be used

Move method

Lockable casters

Working temperature(℃)

-120℃~300℃

Maximum temperature difference(℃)

≤60

Pressure in kettle(MPa)

-0.1~0.1

Jacket pressure resistance(MPa)

≤0.1

Pressure rise rate of vacuum system

≤2kPa/h

Mixing motor power(W)

Common 750W/ explosion proof 750W

Speed regulation mode

Frequency control

Speed adjustment range(rpm)

0~600

Temperature sensor

PT100

Temperature display accuracy(℃)

±0.1

Temperature range

Water: RT~90℃

Oil: RT~300℃

Interface size of stainless steel insulation hose

½in external screw thread

Seal material

PTFE

Installation height of discharge valve(mm)

330

Power

220V/110V,50/60Hz

Environment temperature(℃)

5~35

Relative humidity(%)

≤ 65

Size(mm)

1140W×1240D×3100H

Weight(kg)

190
