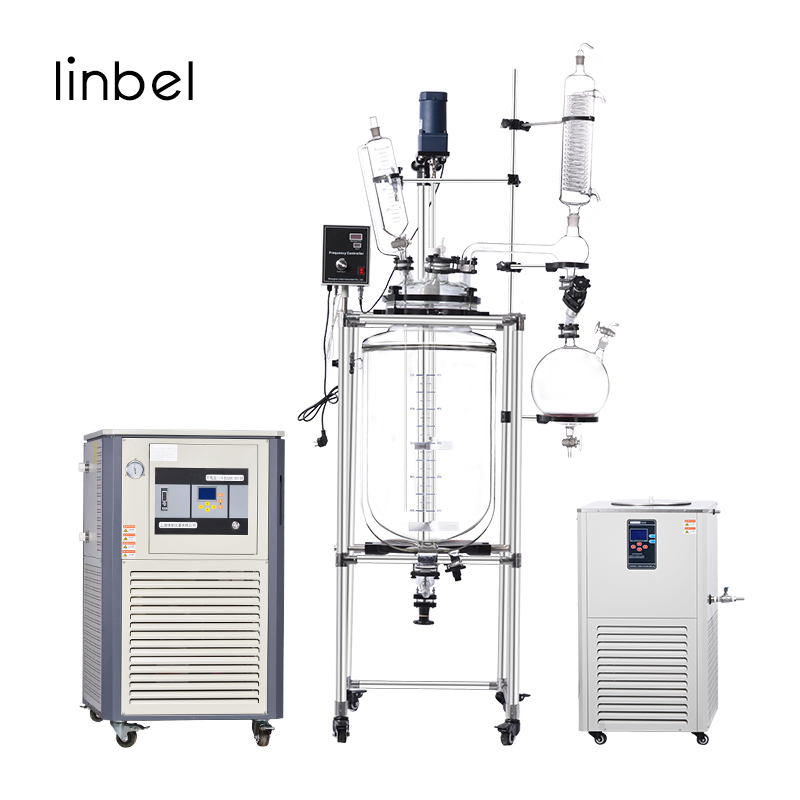

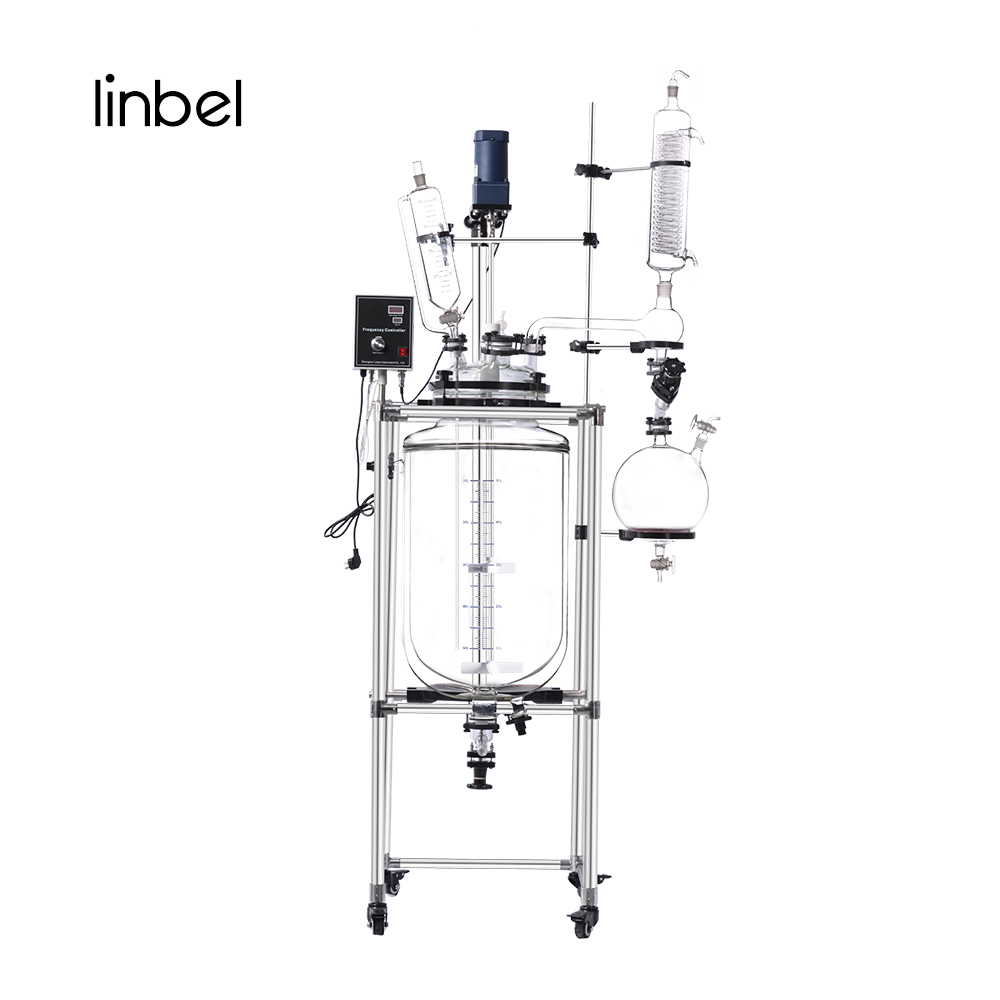

GR-50L Glass Reactor

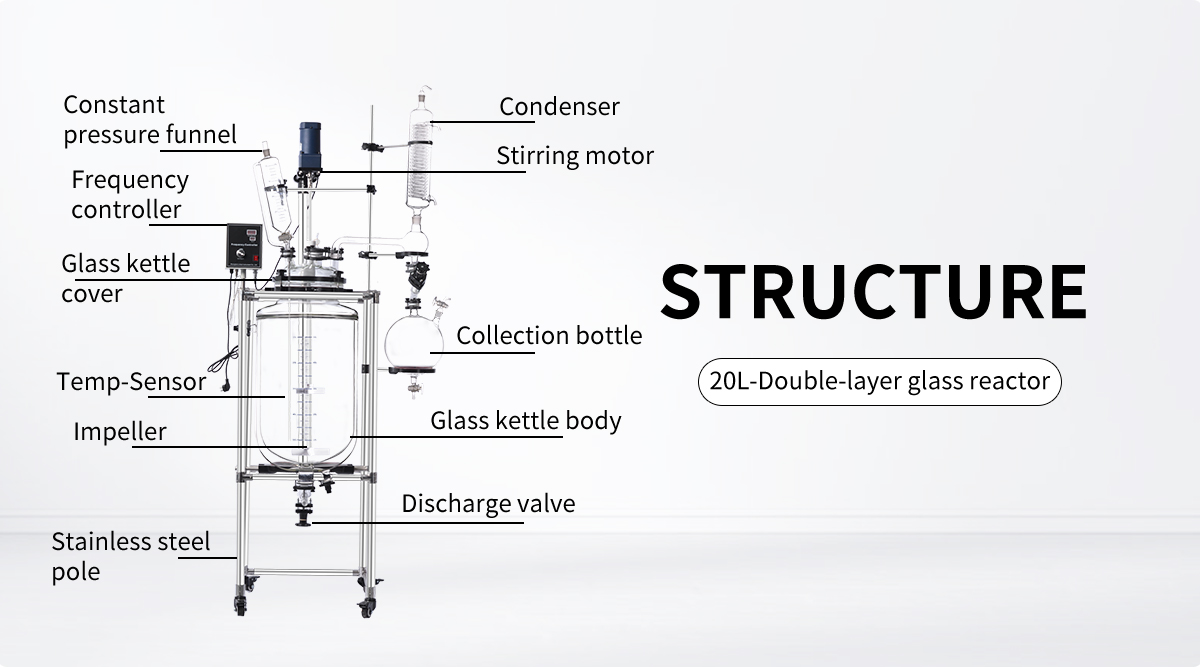

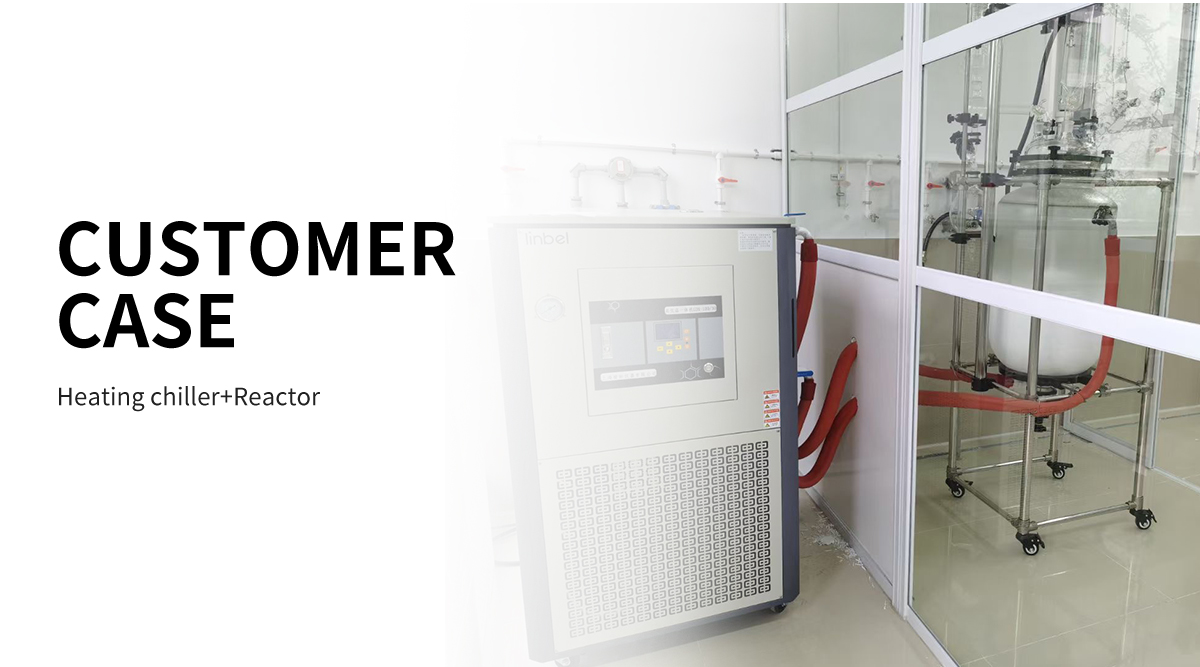

The glass reactor mainly takes advantage of its double-layer glass characteristics. We can place the reaction material (a bit called reaction solvent) in the middle interlayer. Through stirring reaction under normal pressure or negative pressure, the glass reactor can inject constant temperature (high temperature or low temperature) hot solution or coolant through the double-layer reactor interlayer, The materials in the reactor are heated or cooled at constant temperature, and the stirring can be provided.

  • Introduction

  • Specifications

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor

50l Glass Reactor Jacketed Glass Reactor Lab Reflux Distiller Glass Reactor


Model

GR-50L

Volume(L)

50

Jacket volume(L)

16

Condensation area(m²)

0.8

Feeding tank volume(L)

2

Recovery tank volume(L)

10

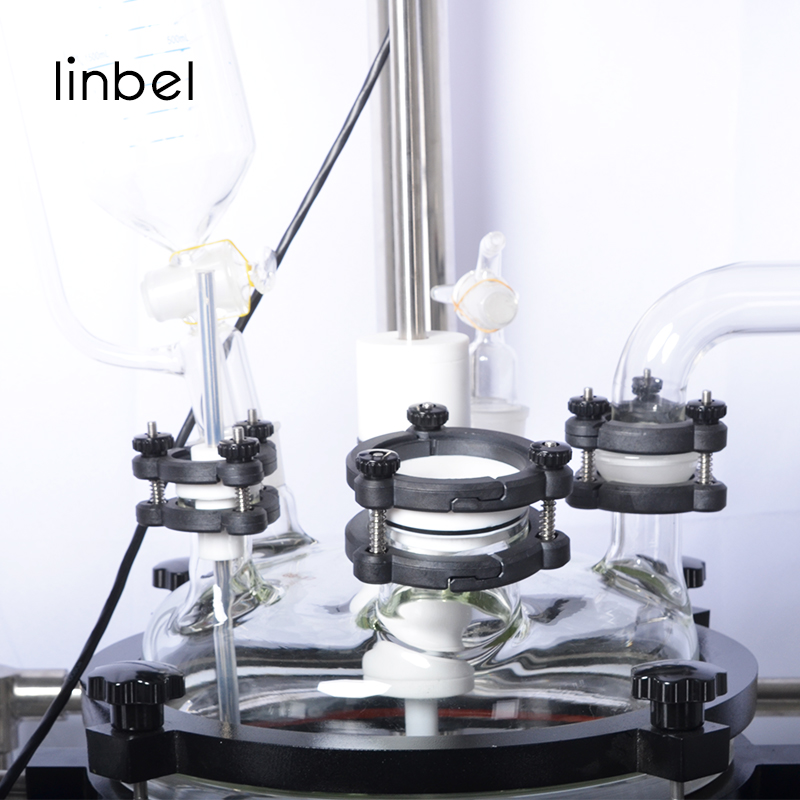

Kettle cover diameter

Impeller diameter

50# flangetype

Temperature sensor diameter

40# flangetype

Condenser connection

50# spherical grinding

Liquid feed inlet

34# standard grinding×1

Feeding tank interface

40# standard grinding

Solid feed inlet

80# flangetype

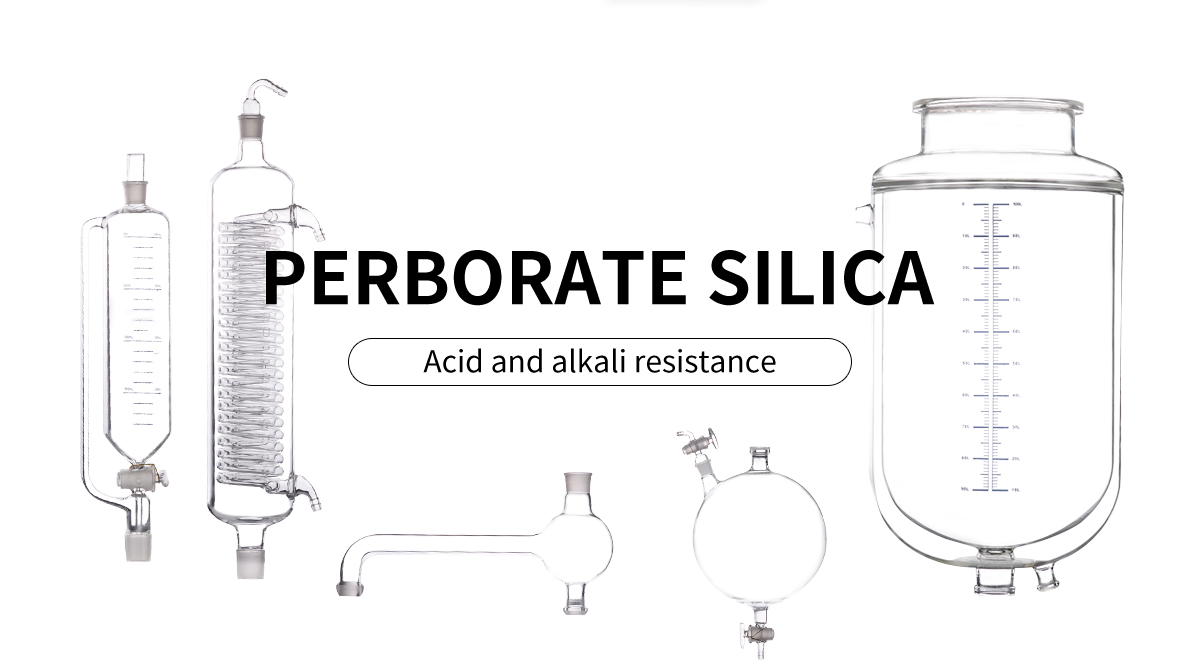

Glass assembly

High borosilicate glass 3.3

Main frame

SUS304

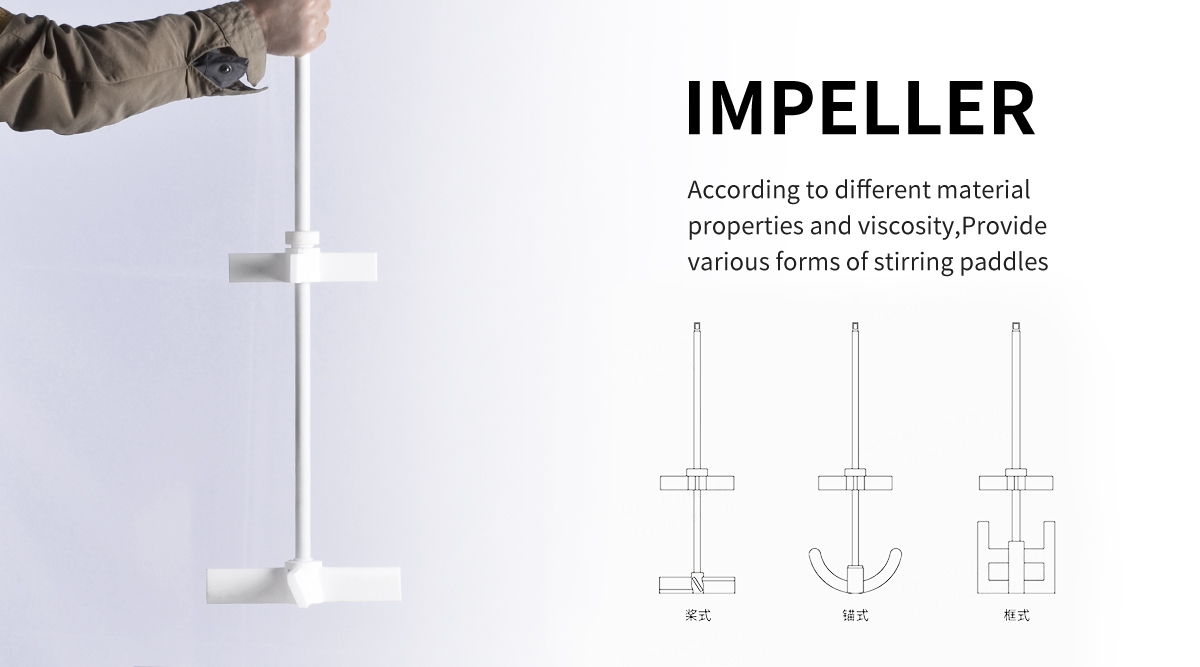

Stirring paddle

Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium

Motor

For viscous materials, high-power motors can be used

Move method

Lockable casters

Working temperature(℃)

-120℃~300℃

Maximum temperature difference(℃)

≤60

Pressure in kettle(MPa)

-0.1~0.1

Jacket pressure resistance(MPa)

≤0.1

Pressure rise rate of vacuum system

≤2kPa/h

Mixing motor power(W)

Common 120W/ explosion proof 180W

Speed regulation mode

Frequency control

Speed adjustment range(rpm)

0~600

Temperature sensor

PT100

Temperature display accuracy(℃)

±0.1

Temperature range

Water: RT~90℃

Oil: RT~300℃

Interface size of stainless steel insulation hose

½in external screw thread

Seal material

PTFE

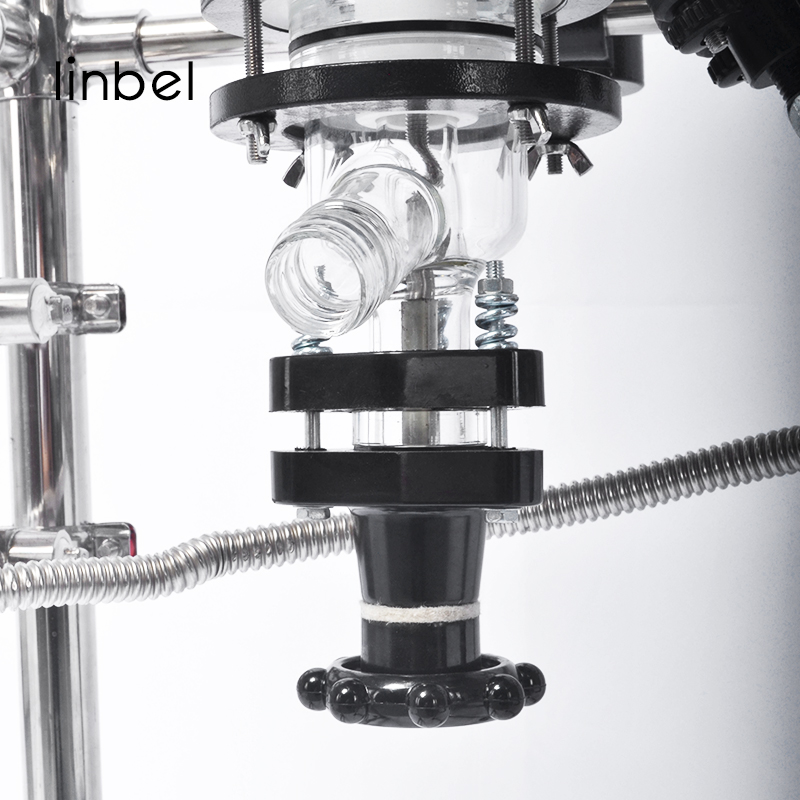

Installation height of discharge valve(mm)

450

Power

220V/110V,50/60Hz

Environment temperature(℃)

5~35

Relative humidity(%)

≤65

Size(mm)

660W*620D*2400H

Weight(kg)

97
