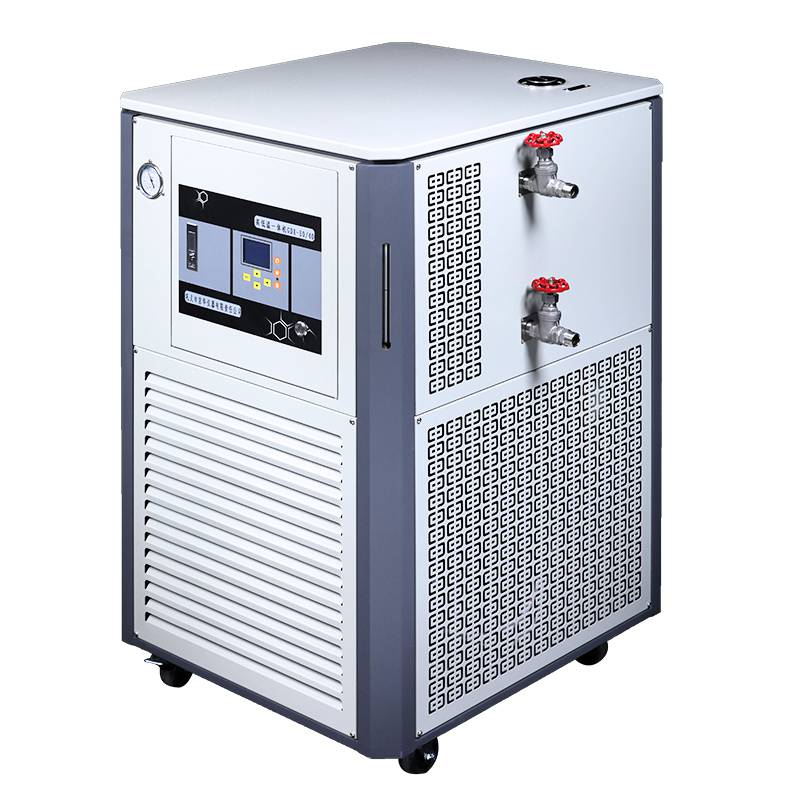

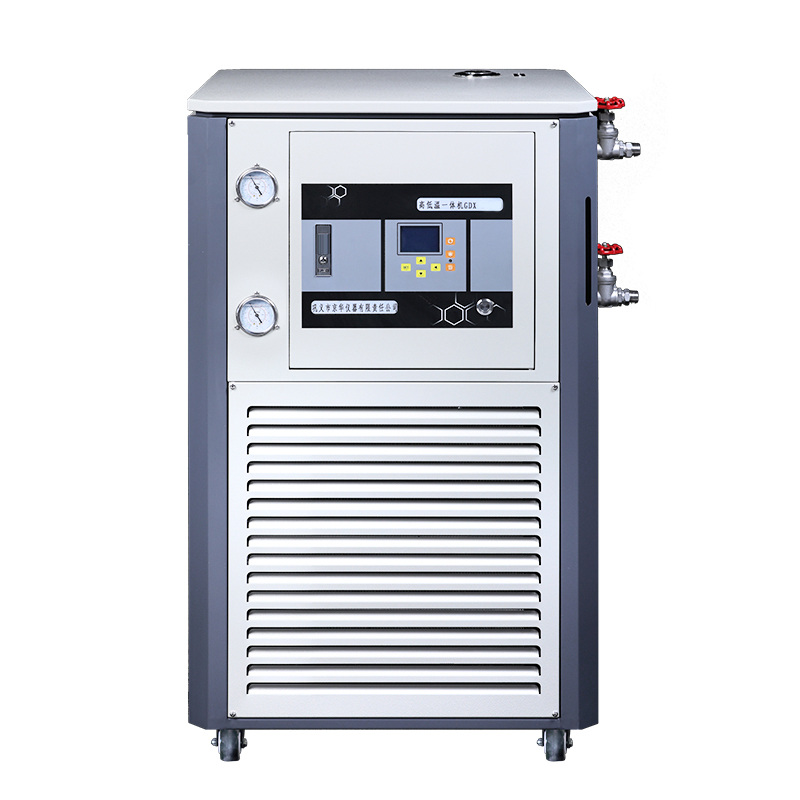

High and low temperature integrated reaction equipment

The high and low temperature integrated reaction equipment is an integrated equipment for smooth operation of the reaction kettle through th touch screen one-button operation. There are programming modules, cooling and heating modules in the unit, which can achieve precise lifting, rotating, heating and cooling effects, and can provide with a temperature control environment of 120℃~250℃, the running curve can also be drawn and exported to the computer for processing.

  • Introduction

  • Specifications








High and low temperature integrated machine
ModelPLC-50/40PLC-50/80PLC-100/40PLC-100/80
Volume17L35L
Load temperature-40℃~250℃-80℃~250℃-40℃~250℃-80℃~250℃
Cooling capacity12775-650W15330-550W15750-550W15750-450W
Flow0~35/ PLC control0~43/ PLC control
Lift12m20m
Voltage380V
Cooling current11A20A11A20A
Heating current12A18A12A18A
Cooling power5500W10800W5600W11000W
Heating power6000W9000W
CompressorTecumseh/ Dafoss/ Emerson-Coperland
Circulation pumpLinbel magnetic circulation pump/ German imported magnetic circulation pump
Expansion valveThermal expansion valve/ electronic expansion valve
Operation panel7-inch color touch screen, temperature curve display and record
Control systemFeedforward PID,  model-free self-building tree algorithm, PLC controller
Temp-controlPLC control of equipment outlet temperature and material temperature

Glass reactor
ModelS212-30LS212-50LS212-80LS212-100L
Colume30L50L80L100L
Jacket volume10L16L24L30L
Power90W120W180W
Rotating speed0~600rpm/ PLC control
Feeding valve40#
Temperature tube600mm650mm850mm
CompressorSerpentine condenser
Collection deviceOptional 5~50L collection bottle
Power supply220V/50Hz
Operation panel7-inch color touch screen, temperature curve display and record
Control systemFeedforward PID, model-free self-building tree algorithm, PLC controller
Temp-controlPLC control of equipment outlet temperature and material temperature
FrequencyStandard
PTFEStandard
Size70*60*240cm70*60*245cm100*75*230cm
