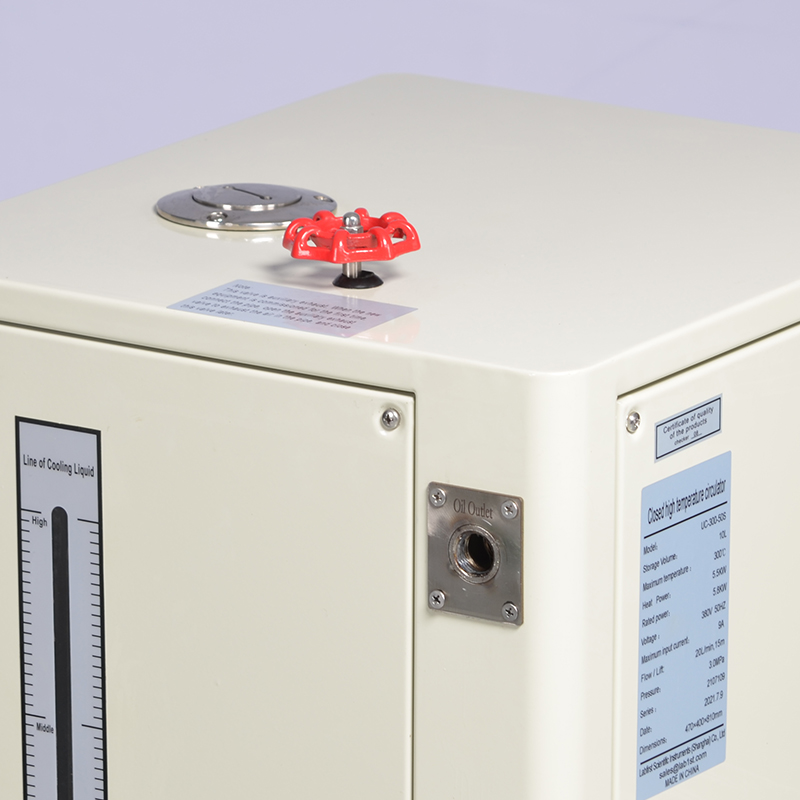

Heating temperature circulating oil bath

Model

UC-3A

UC-6A

UC-9A

UC-15A

UC-20A

UC-24A

UC-36A

UC-60A

Temp. range (℃)

RT ~ 200, ±1

Ambient temp. (℃)

5 ~ 30

Best ambient humidity

45 ~ 80% RH

Voltage (V)

220

220 / 380 / 480
single / triple phase

Frequency (Hz)

50 / 60

Total power (Kw)

3.2

6.3

9.5

15.5

21

25

38

63

Heating method

Electric heating

Temperature sensor

PT100

Water cooler

Plate heat exchanger (without water cooling without cooler)

Safety protection

Self-diagnosis, high pressure switch, overload relay, thermal protection device

Tank volume (L)

10

10

24

24

24

42

70

110

Heating power (Kw)

3

6

9

15

20

24

36

60

Circulation pump type

Vortex pump

Pump power (W)

250

370

750

1500

2200

Pressure (bar)

2.0

2.5

Rated flow (L/min)

35

42

120

200

315

Loop interface

DN15

DN20

DN20

DN25

DN32

Overall size (cm)

70*57*80

75*62*100

78*68*116

100*80*121

120*80*151

Control system

Siemens S7-200 smart PLC

Programming

Can write 5 programs, each with up to 40 steps

Control model

The material temp. And equipment outlet temperature can be switched independently

Communication protocol

Modbus RTU protocol RS485 interface (optional RS232 Ethernet)

Operation panel

7-inch Siemens color touch screen (optional 10 inch)

Data export

Support for USB data export, can export temperature data in TXT format

Installation list

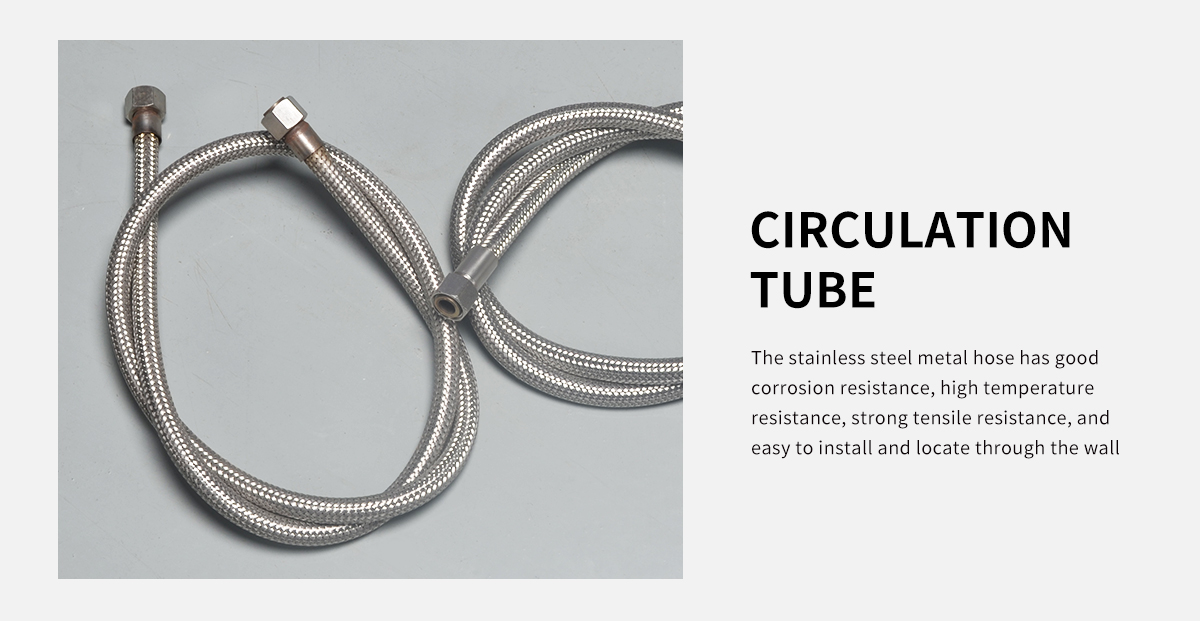

2 sets of valves, 1 roll of thread seal tape / 2 stainless steel insulation hoses / 1operation manual

Model

UC-3B

UC-6B

UC-9B

UC-15B

UC-20B

UC-24B

UC-36B

UC-60B

Temp. range (℃)

RT ~ 300, ±1

Ambient temp. (℃)

5 ~ 30

Best ambient humidity

45 ~ 80% RH

Voltage (V)

220

220 / 380 / 480
single / triple phase

Frequency (Hz)

50 / 60

Total power (Kw)

3.5

6.5

9.5

15.5

21

25

38

63

Heating method

Electric heating

Temperature sensor

PT100

Water cooler

Plate heat exchanger (without water cooling without cooler)

Safety protection

Self-diagnosis, high pressure switch, overload relay, thermal protection device

Tank volume (L)

10

24

42

70

110

Heating power (Kw)

3

6

9

15

20

24

36

60

Circulation pump type

Vortex pump

Pump power (W)

370

750

1500

2200

Pressure (bar)

2.0

2.5

Rated flow (L/min)

30

45

100

110

Loop interface

DN15

DN20

DN25

DN32

Overall size (cm)

70*57*80

75*62*100

78*68*116

100*80*121

120*80*151

Control system

Siemens S7-200 smart PLC

Programming

Can write 5 programs, each with up to 40 steps

Control model

The material temp. And equipment outlet temperature can be switched independently

Communication protocol

Modbus RTU protocol RS485 interface (optional RS232 Ethernet)

Operation panel

7-inch Siemens color touch screen (optional 10 inch)

Data export

Support for USB data export, can export temperature data in TXT format

Installation list

2 sets of valves, 1 roll of thread seal tape / 2 stainless steel insulation hoses / 1operation manual
