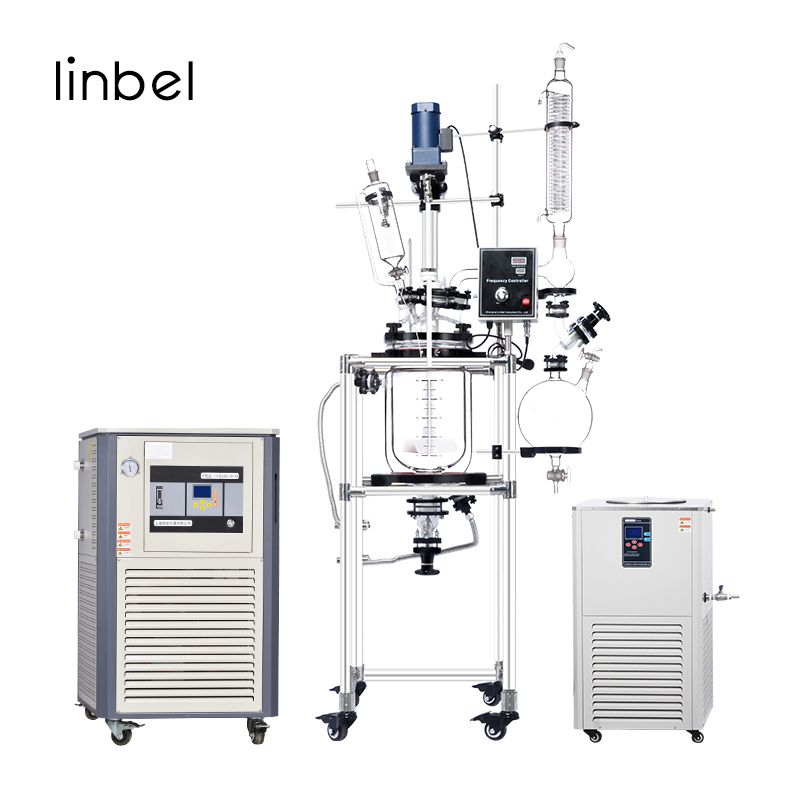

GR-10L Glass Reactor

The reaction medium is placed in the inner layer of the glass reactor for stirring reaction, and the interlayer circulates through cold and heat sources. The interlayer of the glass reactor can provide high temperature reaction (the maximum temperature can reach 300 ℃); Glass reactor can also do low temperature reaction (the lowest temperature can reach - 80 ℃); The glass reactor can be vacuumized to do negative pressure reaction. And its unique design makes the test safer and more convenient.

  • Introduction

  • Specifications

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

10L Mini Jacketed Fermenter Bioreactor Glass Reactor

Model

GR-10L

Volume(L)

10

Jacket volume(L)

3

Condensation area(m²)

0.6

Feeding tank volume(L)

1

Recovery tank volume(L)

5

Kettle cover diameter

Impeller diameter

50# flangetype

Temperature sensor diameter

40# flangetype

Condenser connection

50# spherical grinding

Liquid feed inlet

34# standard grinding×1

Feeding tank interface

40# standard grinding

Solid feed inlet

80# flangetype

Glass assembly

High borosilicate glass 3.3

Main frame

SUS304

Stirring paddle

Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium

Motor

For viscous materials, high-power motors can be used

Move method

Lockable casters

Working temperature(℃)

-120℃~300℃

Maximum temperature difference(℃)

≤60

Pressure in kettle(MPa)

-0.1~0.1

Jacket pressure resistance(MPa)

≤0.1

Pressure rise rate of vacuum system

≤2kPa/h

Mixing motor power(W)

Common 120W/ explosion proof 180W

Speed regulation mode

Frequency control

Speed adjustment range(rpm)

0~600

Temperature sensor

PT100

Temperature display accuracy(℃)

±0.1

Temperature range

Water: RT~90℃

Oil: RT~300℃

Interface size of stainless steel insulation hose

½in external screw thread

Seal material

PTFE

Installation height of discharge valve(mm)

450

Power

220V/110V,50/60Hz

Environment temperature(℃)

5~35

Relative humidity(%)

≤65

Size(mm)

600W*570D*2050H

Weight(kg)

70
