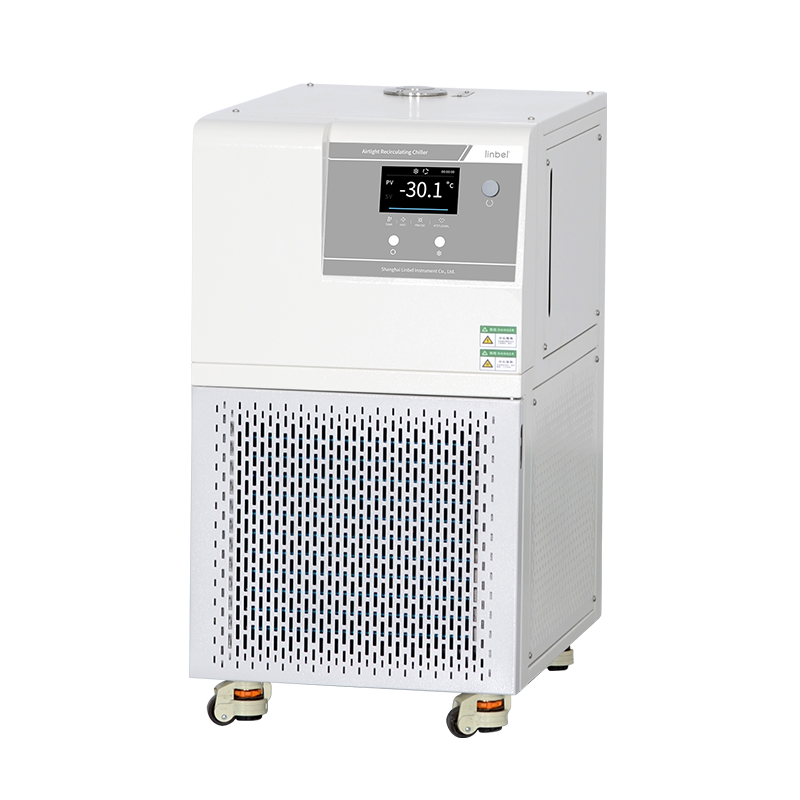

Larger cooling capacity, simpler operating mode, and more innovative appearance. New ARC recirculating chiller, specially dedicated by Linbel Instrument.

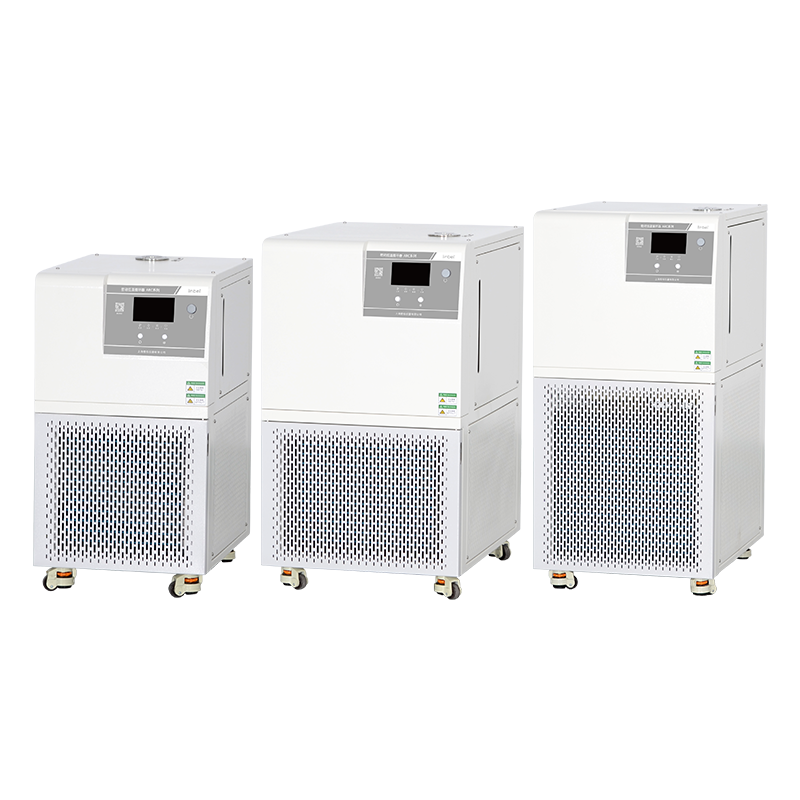

ARC Series | |||||
Model | ARC-5 | ARC-10 | ARC-20 | ARC-50 | |
Temperature range | -30℃ ~ RT；±2℃ | ||||
Voltage | 220V ~ 50/60Hz | ||||
Power（kW） | 1.2 | 1.7 | 2.5 | 4.5 | |
Cooling capacity（kW） | 25℃ | 2 | 3 | 4 | 7.5 |
0℃ | 1.2 | 1.7 | 2 | 5 | |
-30℃ | 0.3 | 0.5 | 1 | 2.3 | |
Temperature sensor | PT100 | ||||
Protection | Protection against overvoltage, delay, overcurrent, overheating, leakage, etc | ||||
Refrigerant | R404A | ||||
Evaporator type | Plate heat exchanger | ||||

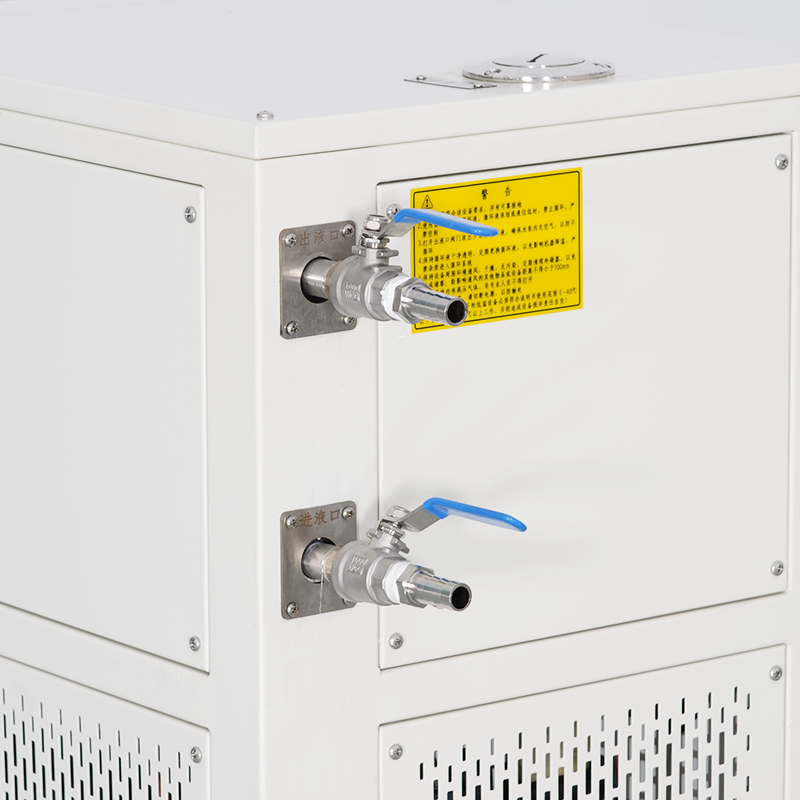

External circualtion adapter size（DN） | 15 | 15 | 15 | 15 | |
Fan type | External rotor axial flow fan | ||||
Condenser type | Air cooling（Optional water cooling） | ||||
Compressor power（kW） | 0.75 | 1.2 | 1.8 | 3.8 | |
Tank volume（L） | 4 | 7 | 10 | 17 | |
Rated head（m） | 8 | 20 | 20 | 20 | |
Rated flow（L/min） | 15 | 20 | 20 | 20 | |
Size（mm） | 430*610*750 | 530*720*930 | 530*720*1100 | 530*720*1100 | |

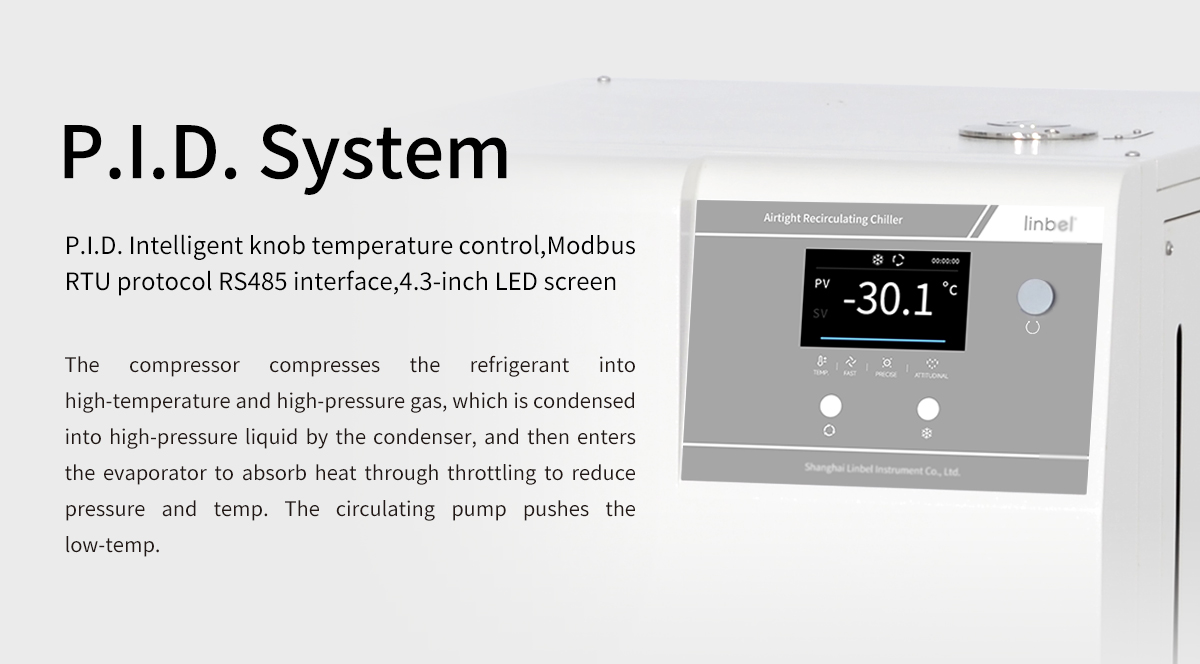

Control mode | Control system | P.I.D. intelligent adjustment, knob temperature control, button operation | |||

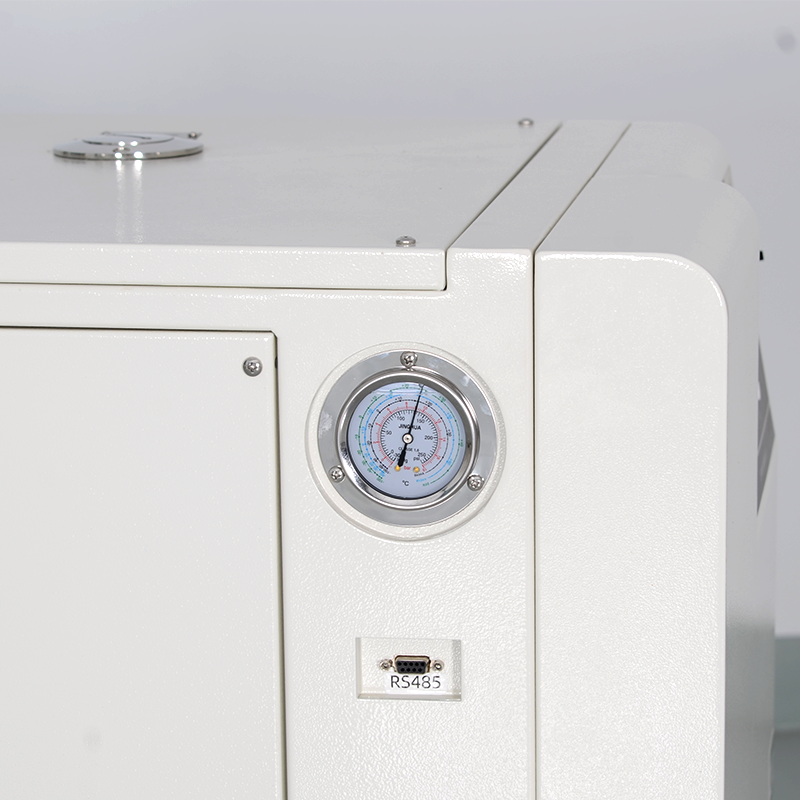

Communication protocol | Modbus RTU protocol, RS485 interface | ||||

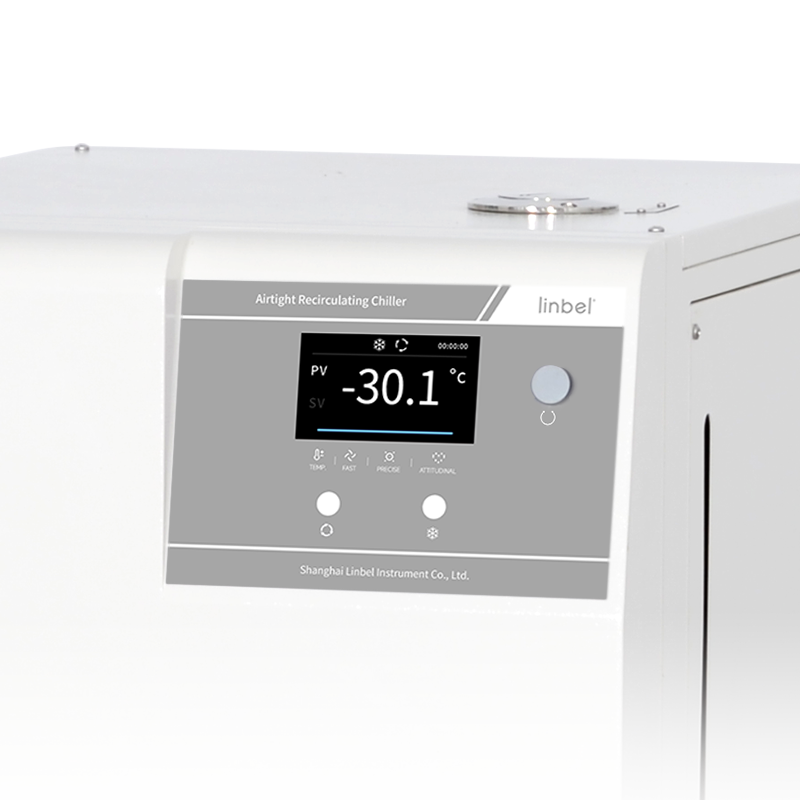

Operation panel | 4.3-inch LED screen | ||||

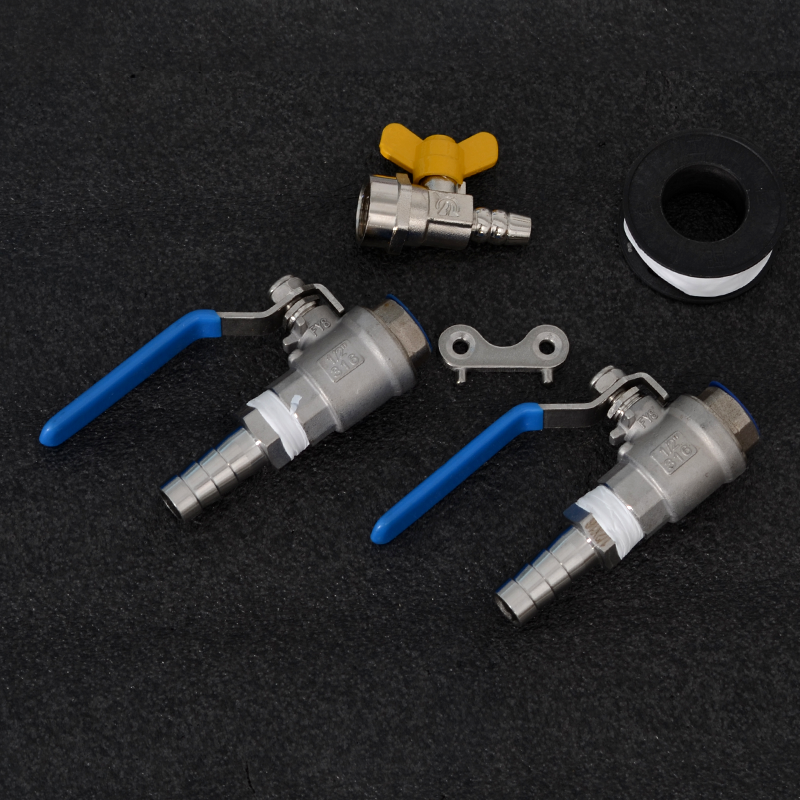

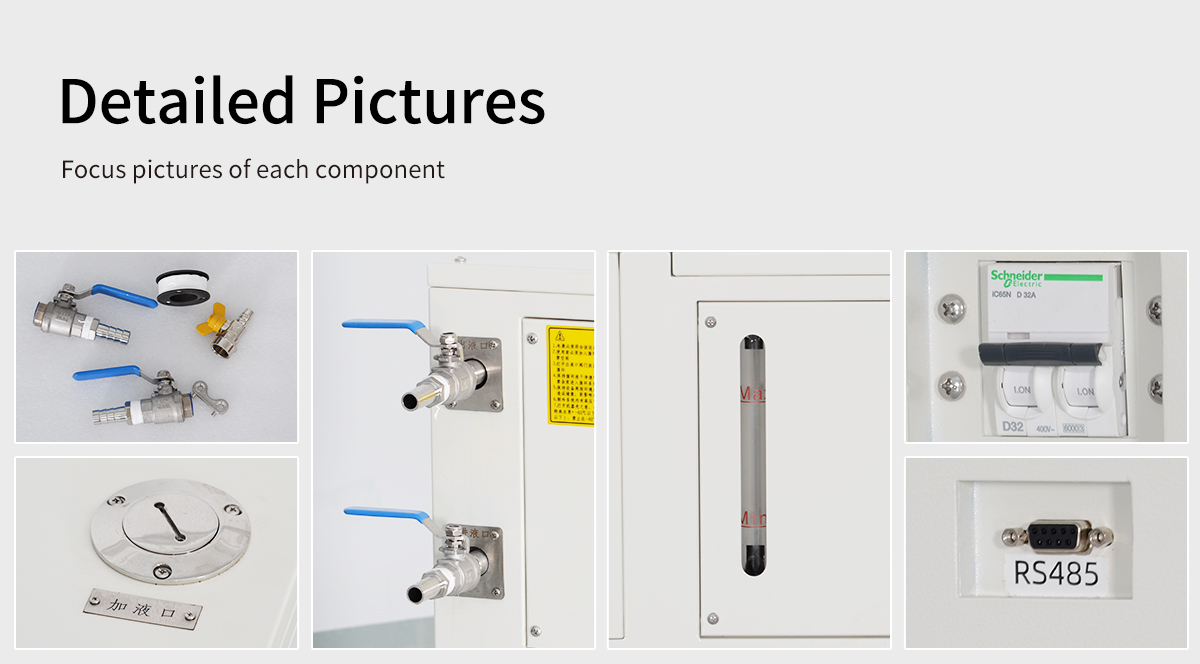

Packing list | Suitable for 2 sets of valves, 1 roll of raw material belt/2 insulation circulation pipes/1 set of operation manual | ||||
