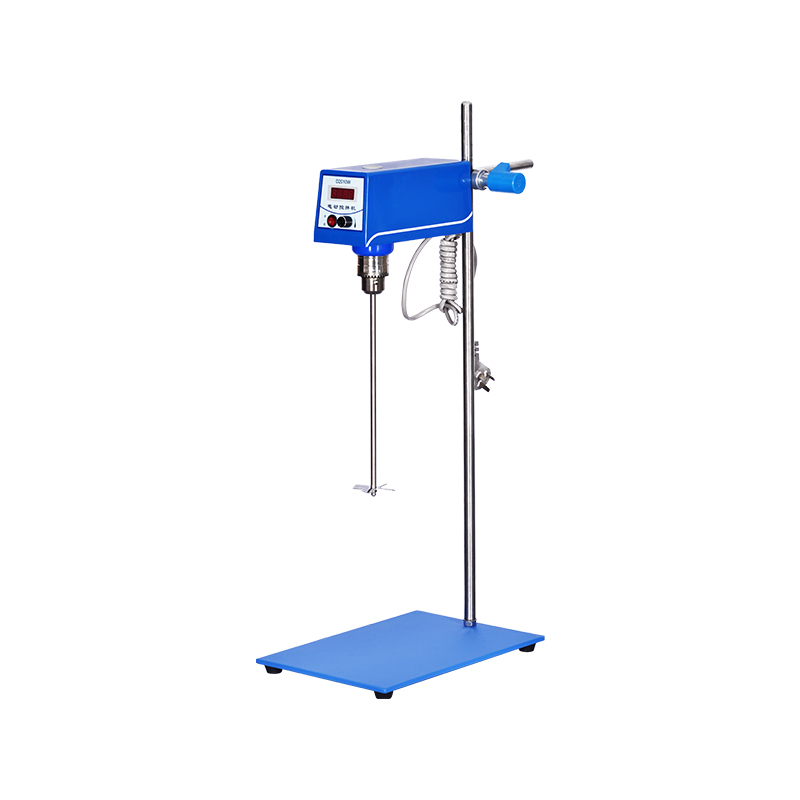

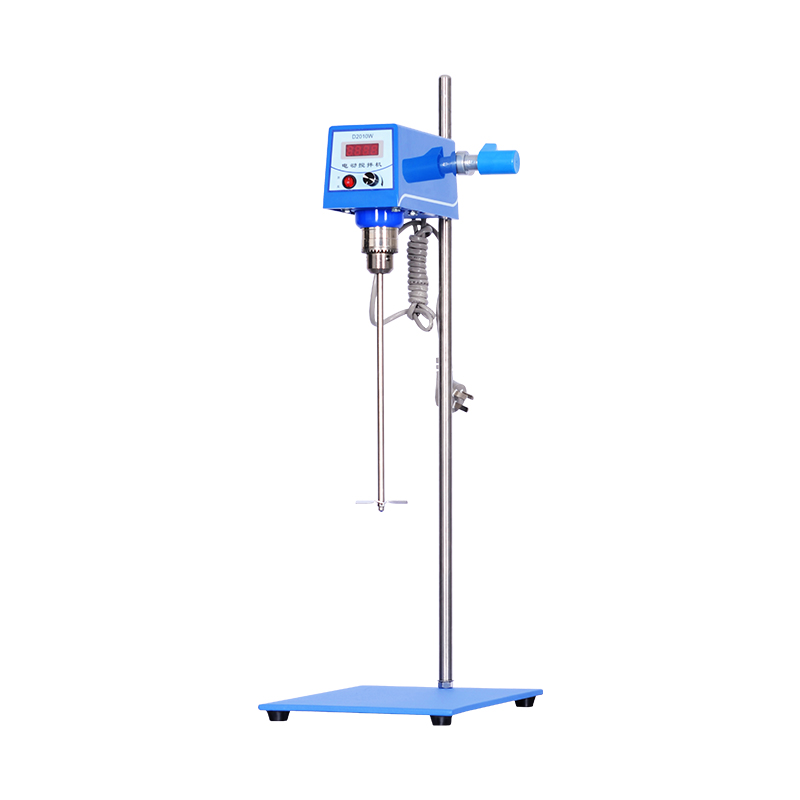

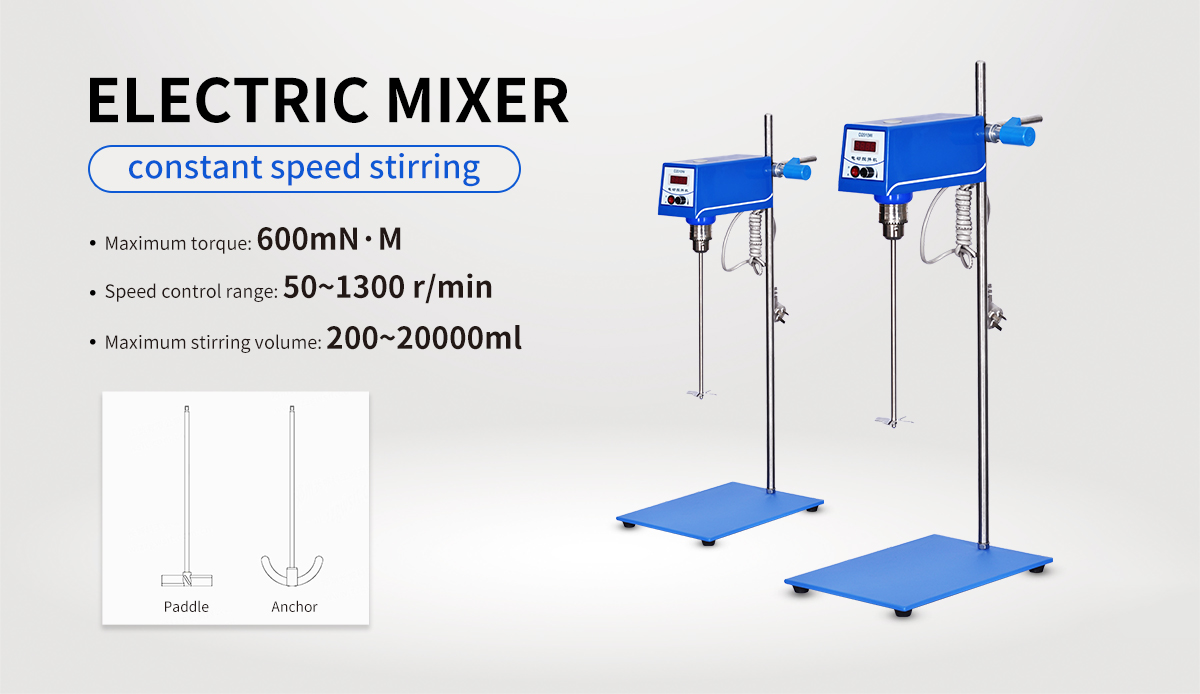

Electric Mixer

Model

CSU40

Speed range

50 ~ 1800rpm

Timing range

100h

Max viscosity

10000 ~ 30000mPas

Max mixing volume (water)

20L

Max torque of collet

40Ncm

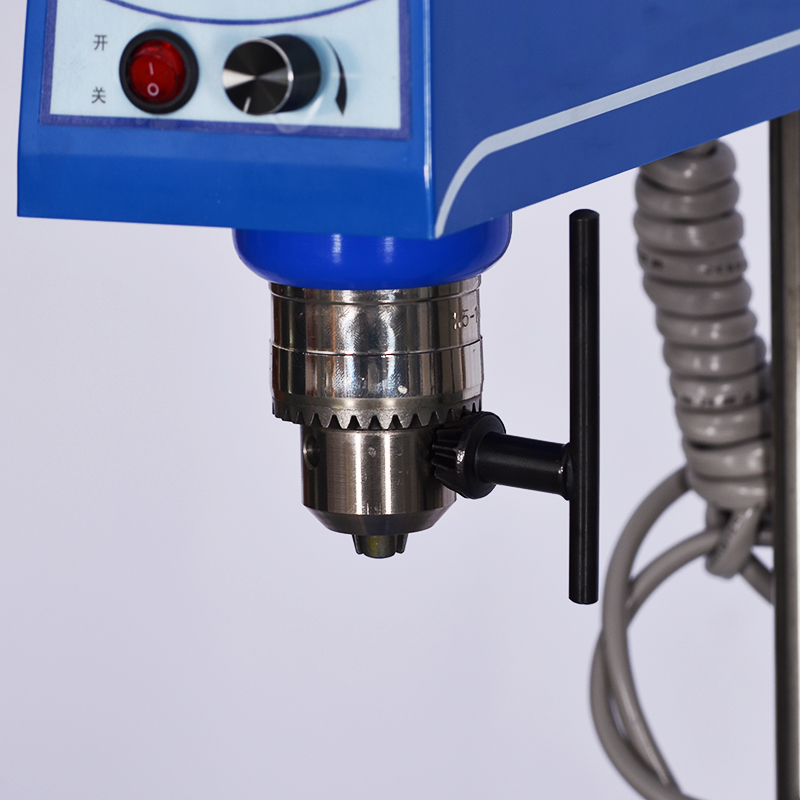

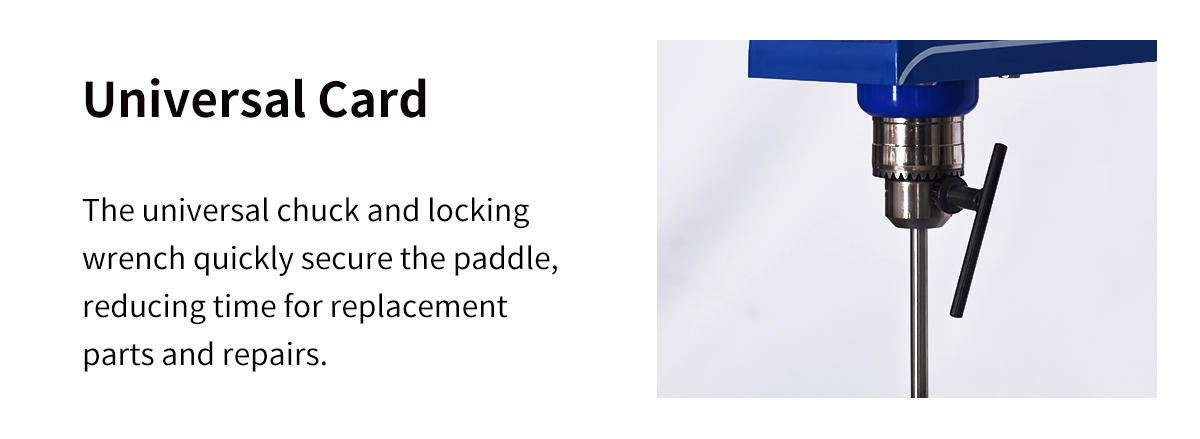

Clamping range of drill chuck

0.5 ~ 10mm

Hollow stirring shaft sleeve

Yes

Max output power of motor

150W

Voltage

100 ~ 240VAC / 50 ~ 60Hz

Power

180W

Ambient temp

5 ~ 40℃

Ambient humidity

80%RH

Size (L*W*H)

277*205*77mm

Wright

13kg

Protection

IP40

Fuses

3A

Concentricity tolerance

＜0.1mm

RS485

Optional

PT100sensor

Optional
