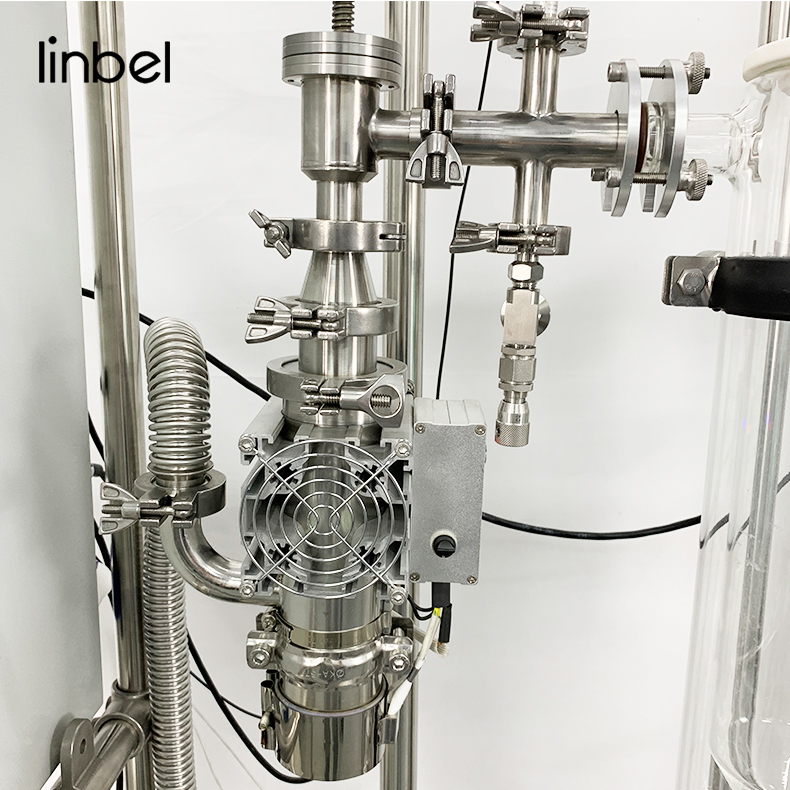

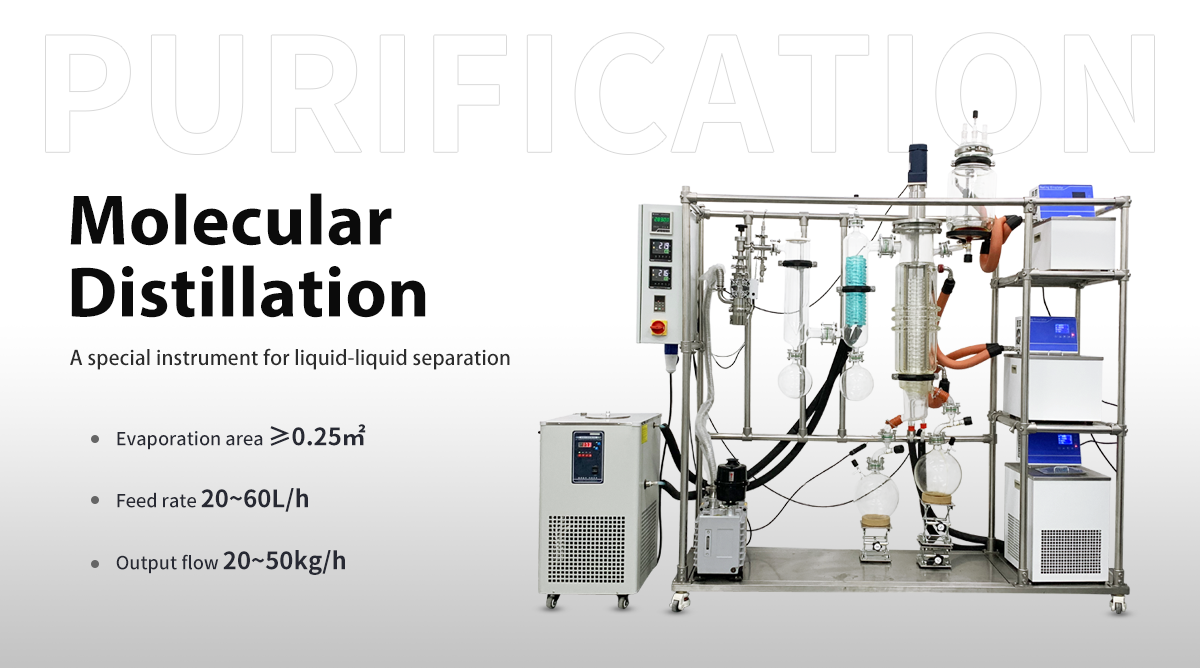

Glass Wiped Film Distillation Unit

Molecular distillation is considered as the safest mode of separation and to purify the thermally unstable molecules and related compounds with low volatility and elevated boiling point. The process distinguishes the short residence time in the zone of the molecular evaporator exposed to heat and low operating temperature due to vacuum in the space of distillation.

  • Introduction

  • Specifications






Model

GLass Molecular Distillation Machine

GMD-150

Feed Rate (kg/hr)

2.5-40

Estimate Throughtput at End of 8-10 hr. day for CBD

20kg

Effective Evaporation Area

0.25square

Motor Power

120w

Maximum Speed

350rpm

Barrel Diameter

150mm

Feeding Funnel Volume

3L

Dimension (W x H x D)

2270 x 228 x 1940mm

Internal Condenser Area

0.4square

Jacketed Feeding Vessel Volume

3L

Distillate Receiving Vessel Volume

5L

Residue Receiving Vessel Volume

3L

Stirrer Seal

Oil-less Magnetic, High Vacuum

Wiper

PTFE Scraper

Structure Material

Borosilicate Glass 3.3

Vacuum Gauge

Pirani style

Operation Temperature

Up to 250℃

Vacuum Level

Better than 10 Pa

Voltage

220V-single phase
